Name: Dental Unit AY-215C2
Brand: GETM
Availability: InStock
Rating: 4.7 (60 reviews)

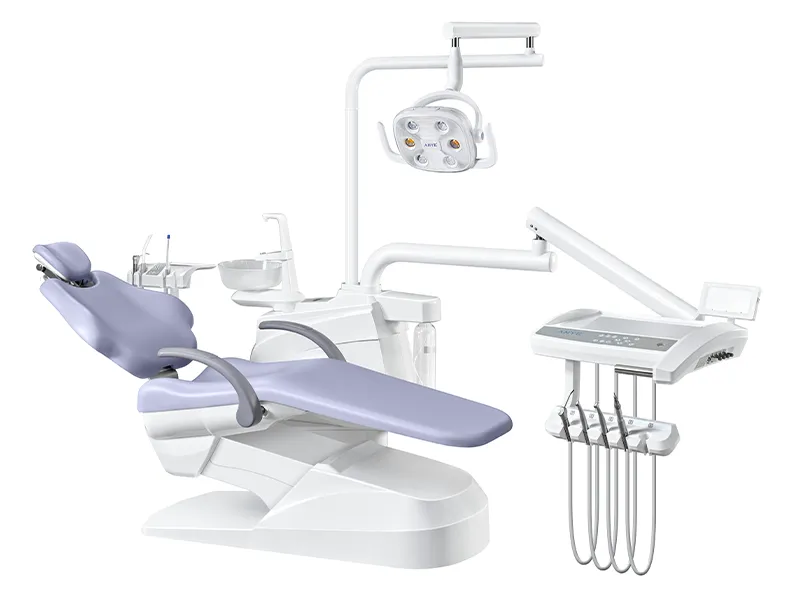

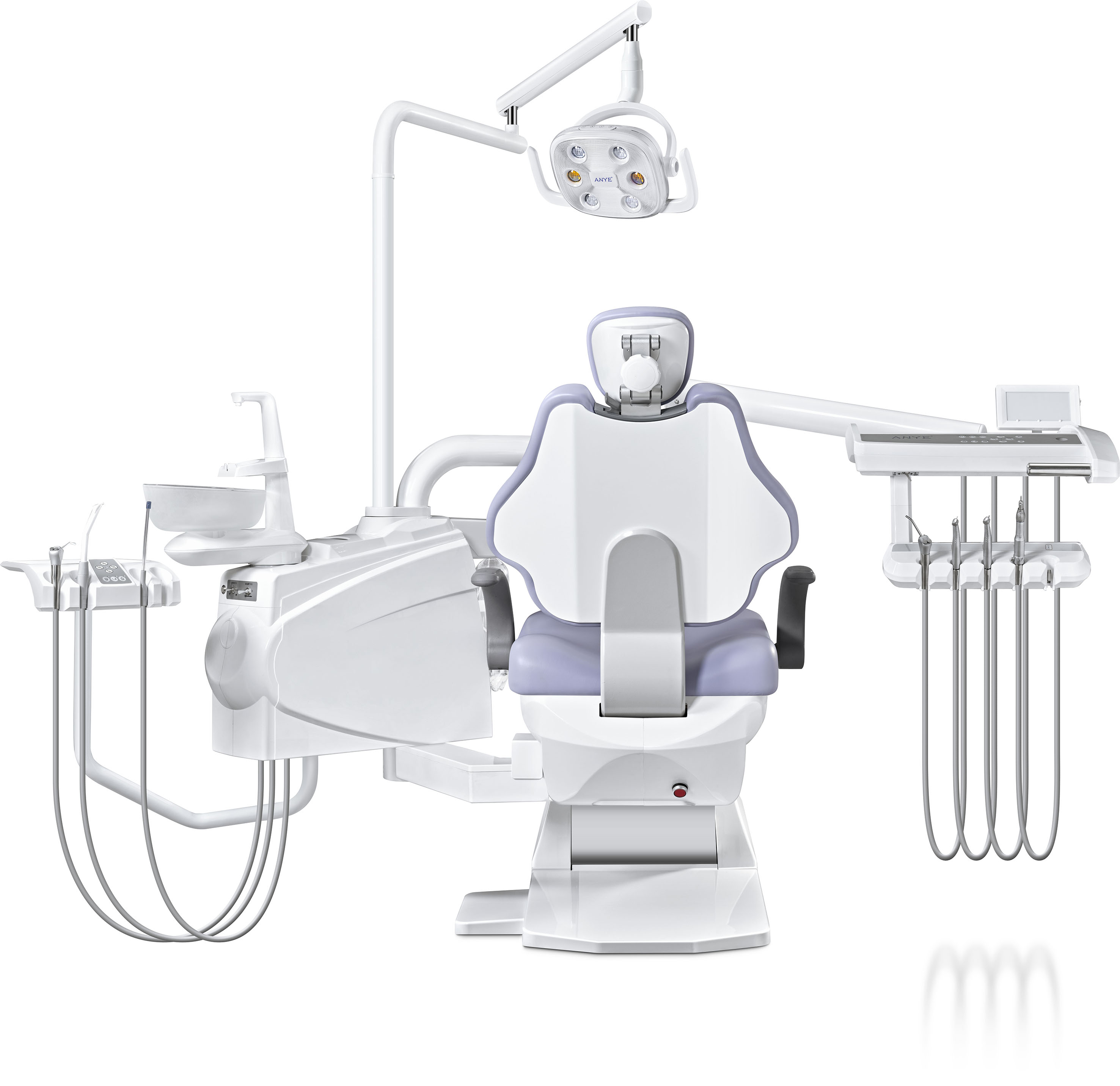

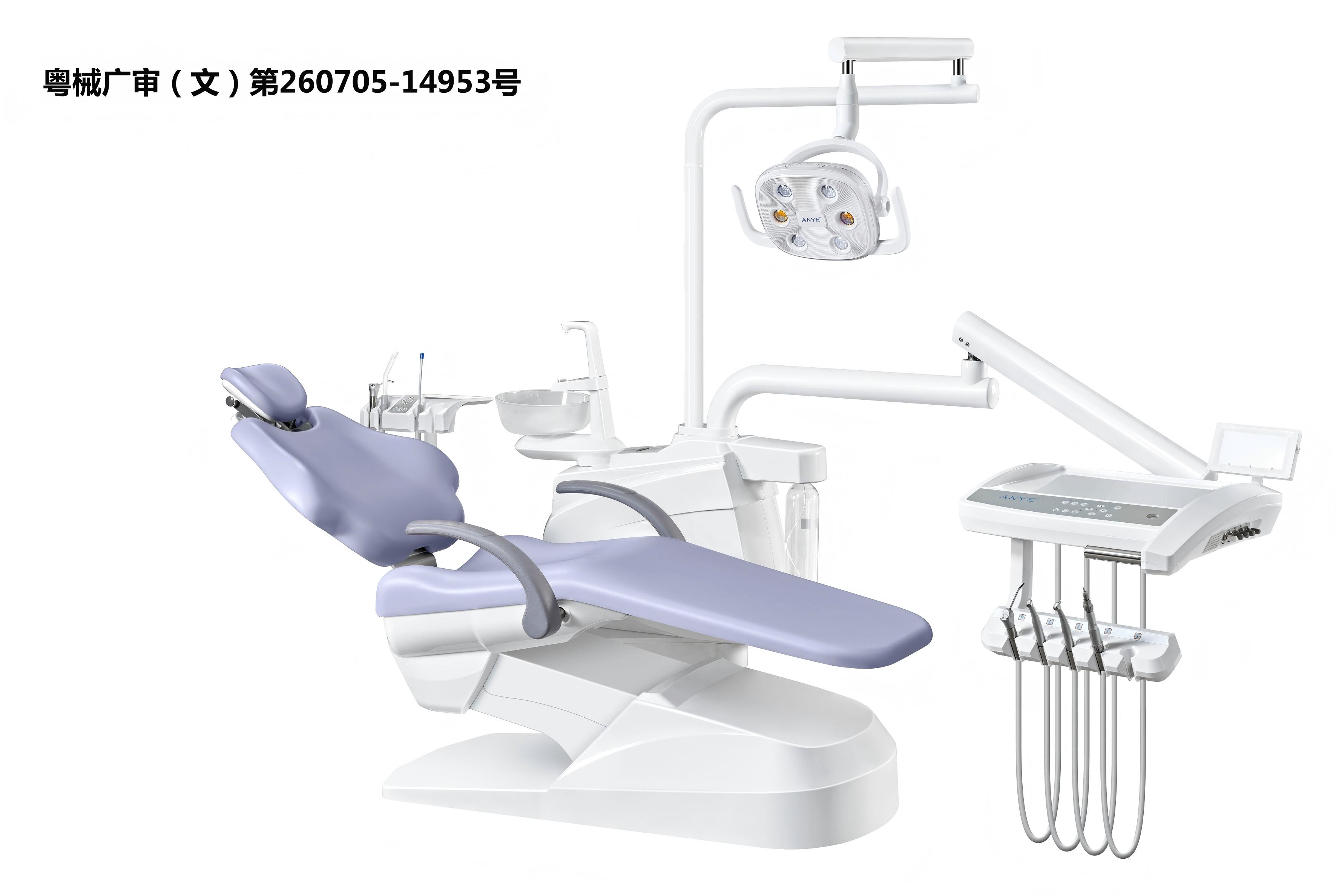

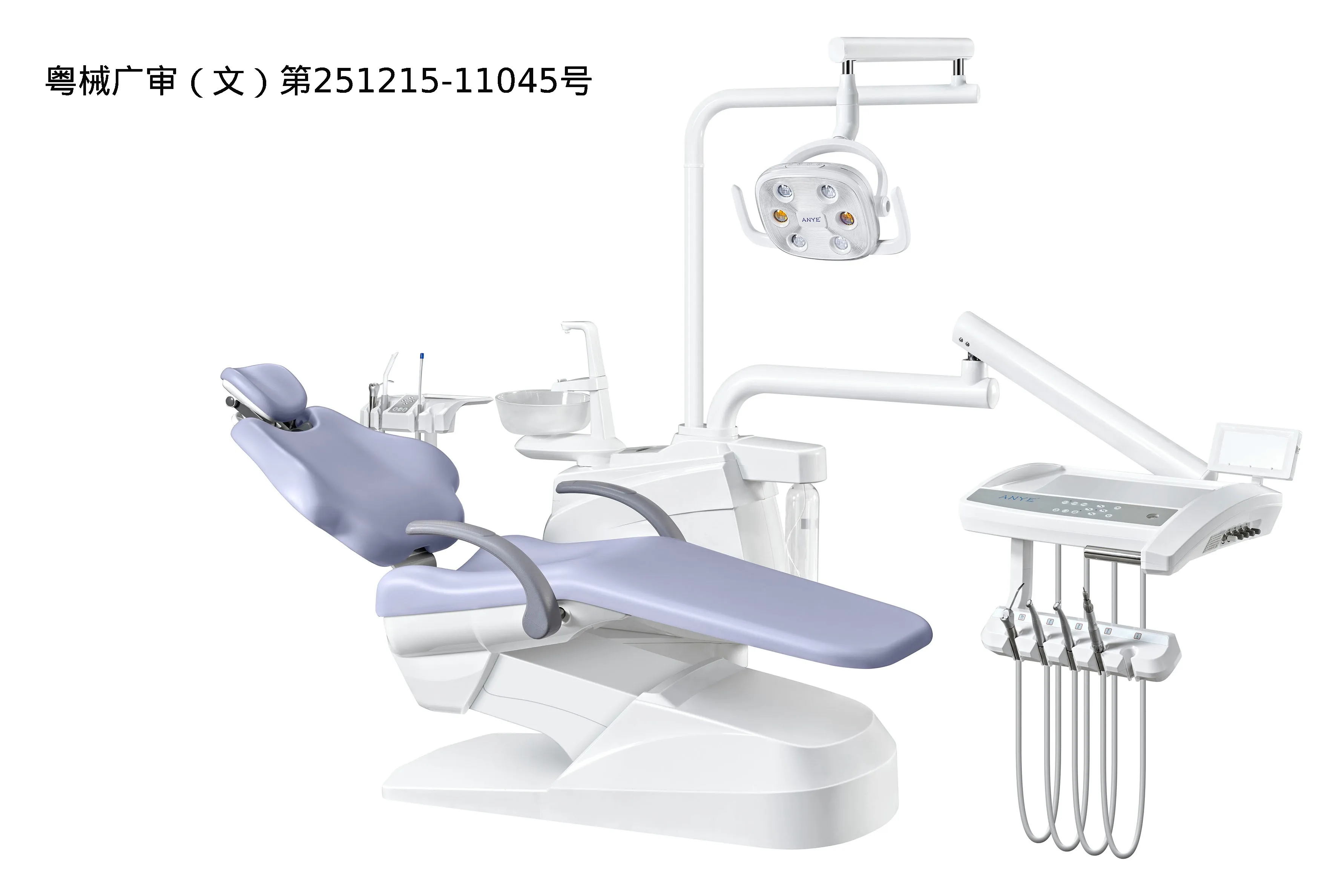

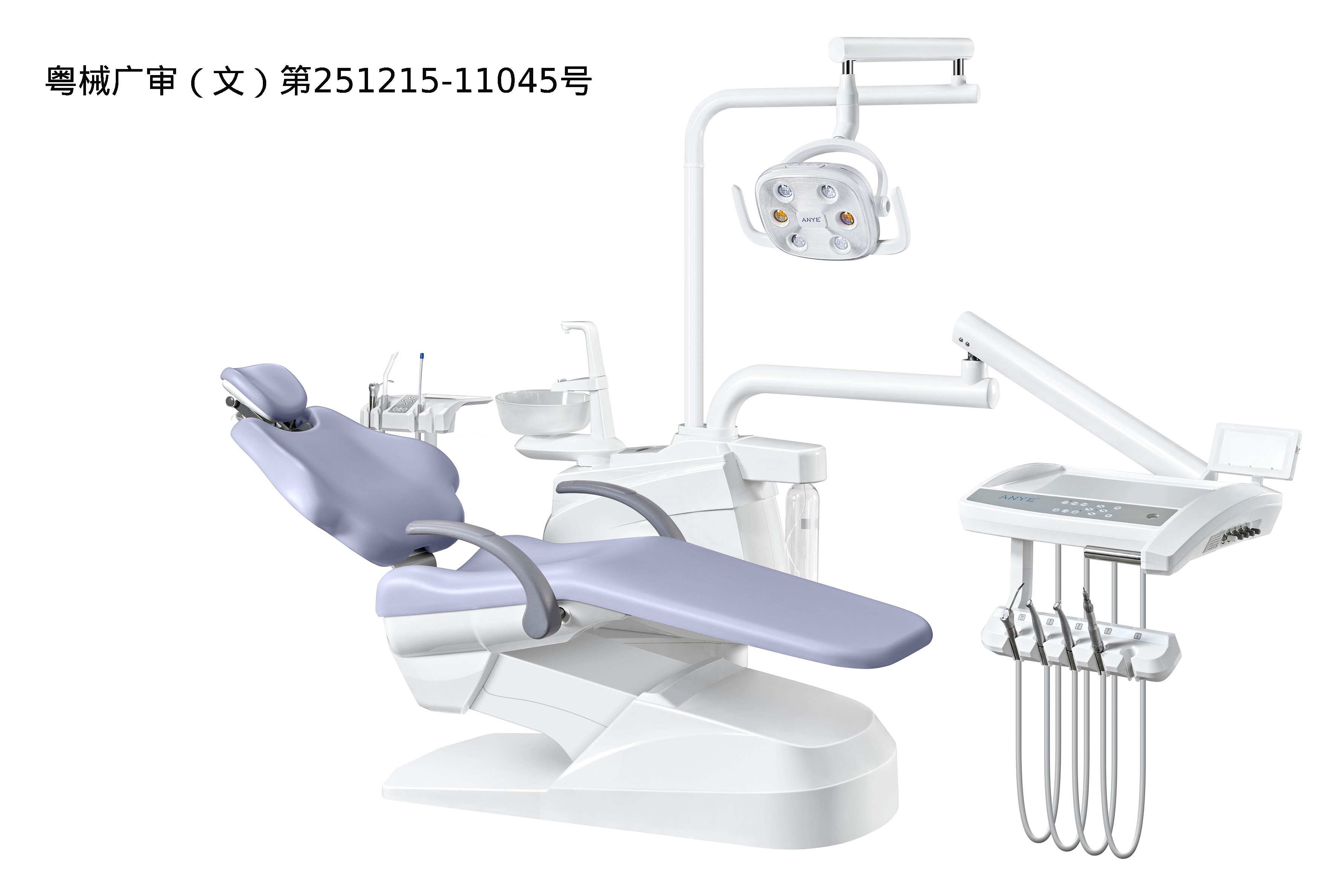

Dental Unit AY-215C2

AY-215C2 is made of a high-end professional dental unit based on comfort and technology. The product is designed according to market demand to meet the clinical professional needs of medical staff and provide patients with wide and comfortable seats. It is in line with the ergonomic streamline design, can automatically cooperate with the cushion movement to form an elevation angle, and has a stronger sense of back support. The intimate design of AY-215C2 can bring more comfort to patients.

CONCEPT OF THOUGHTFUL DESIGN

Ergonomic and streamlined backrest design,which can automaticallycooperate with the seat to form an elevation,creating stronger sense ofsupport from backrest.
The curved pillow can prevent shaking.
Considerate design of AYA-215C2 can bring greatest comfort topatients.

C2-3

Purchase parts:

C21

Instrument Tray

Electric dental chair control system with 16 control buttons, 3 memories and one button preset working position which greatly improves the dentist's work efficiency.
The large-capacity instrument panel is convenient for storing medical supplies needed for treatment.

C22

Luxury Detachable Spittoon

The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.

C23

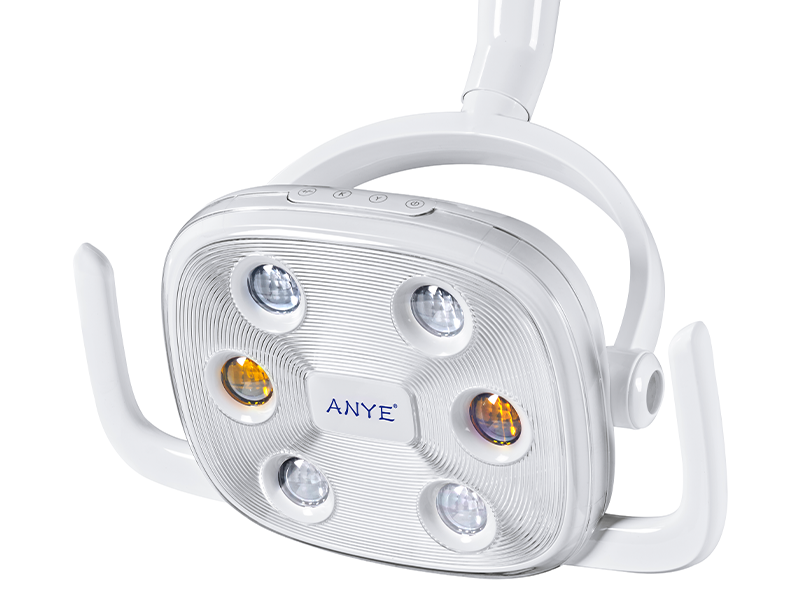

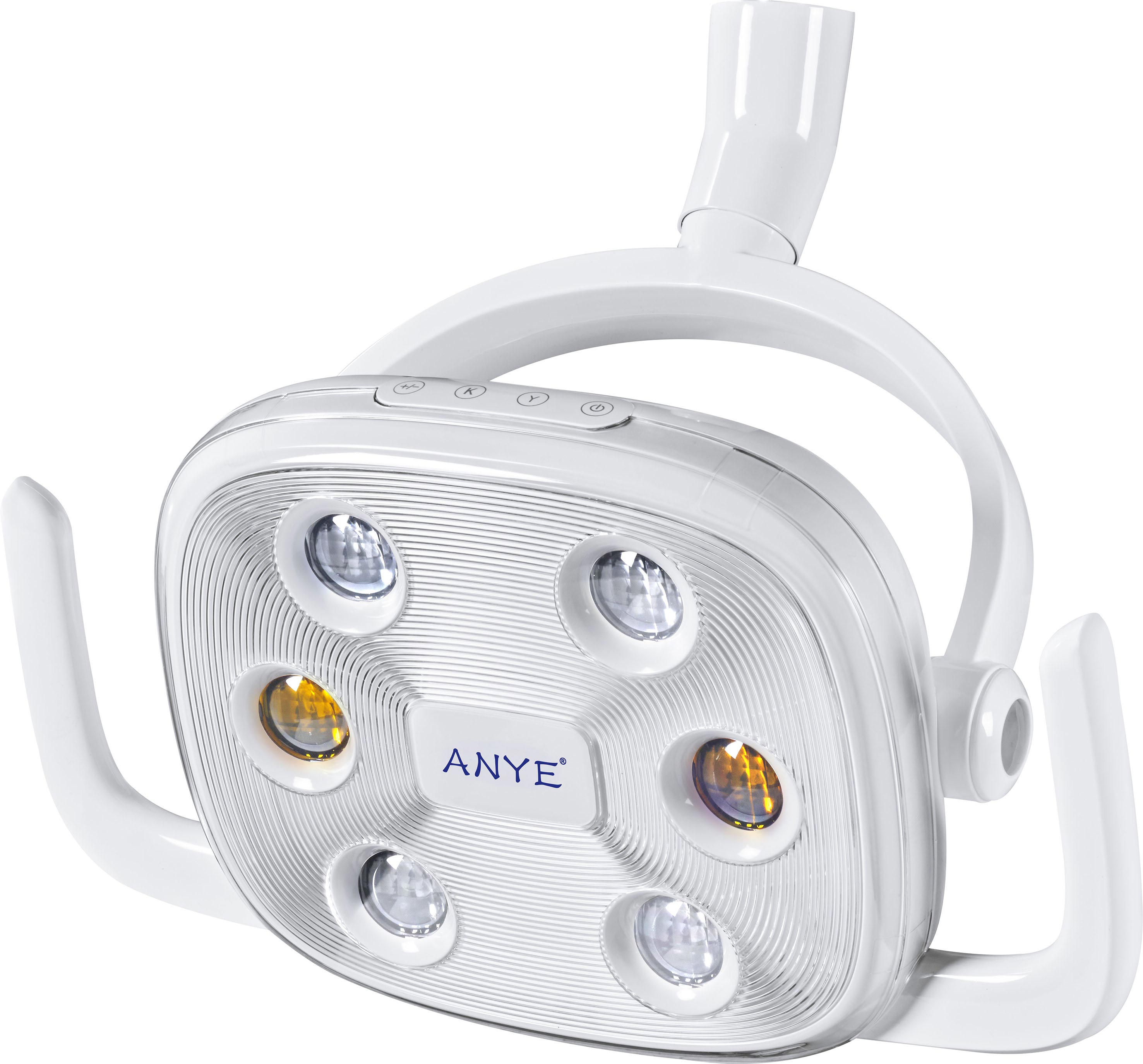

White and yellow light LED lamp

Sensor and manual are available. Color temperature of 5.000k±10% reflected light is more uniform, light source adopts a mixture of yellow and white which is closer to natural light. It is recommended to use yellow light for resin filling to prevent the resin from curing prematurely.

C24

Glass Plate

The rotatable plate can hold keys, mobile phones, mirrors, tissues and others.

C25

Assistant Operating Control System

With 7 control buttons, it is convenient for assistant to use the common functions of dental chair, assist dentists to improve work efficiency.

C26

Flushing and Water Supply

The water supply nozzle is higher 2cm above surface of the spittoon tank to avoid cross-infection caused by water splashing on the water supply nozzle during flushing. The water supply seat can be detached for cleaning.

C27

Rotatable Cabinet

The side box can be rotated 45° and the moving range is easily locate the space required by the assistant.

140x140

Foot Pad

The Foot pad is made of PU material that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.

140x140

Rotatable Armrest

The armrest can be rotated horizontally which is convenient for patients to lie up and down the chair.

140x140

Aluminum Cabinet

High strength integral molding, integral casting aluminum, no rust, high hardness, durable, not easy to deformation.

140x140

Dentist Stool A

Dental stool C with 360°mute universal wheel which is flexible to move, cushion lifting. It’s provides the dentist with good support for the haunch and waist.

140x140

Chair Frame

The chair frame is made of 4mm metal cutting by the laser machine. It’s with precise dimensions which is the highest standard in the dental unit industry.

140x140

Cast aluminum lamp holder

Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).

Key parts:

4mm High Quality Steel Is Cut By Laser Cutting Machine

All ABS Plastic By Injection Moulding

Import Medical Water & Air Tube

Import Member And Valve

Import Motor

Import Pressure Reducing Valve

Import Solenoid Valve

Power Supply With Protection System

Self-designed PCB System, Import Chip

Technical Parameters:

Power Voltage	22V-50HZ/60HZ
Motor Voltage	24V
Air Pressure	0.5MPa-0.8MPa
Water Pressure	0.2MPa-0.4MPa

LED Light:

Rated input Voltage	AC12V±10%
Maximum Power	15VA
Light Source	1 light-emitting diodes (LED)
Color Temperature	5,000K ± 10%
Illuminance	Adjustable from ＜8,000 to ＞30,000
